5 Axis Pipe CNC Plasma Cutting Machine Feature and Technical Parameter.

What is the process of H beam production line?The production methods of H beam mainly include welding and hot- The H-beam production process can be divided into the following procedures: plate pretreatment→cutting and blanking-H-beam assembly→welding→flaw detection→correction→end surface processing→drilling→cleaning and coating

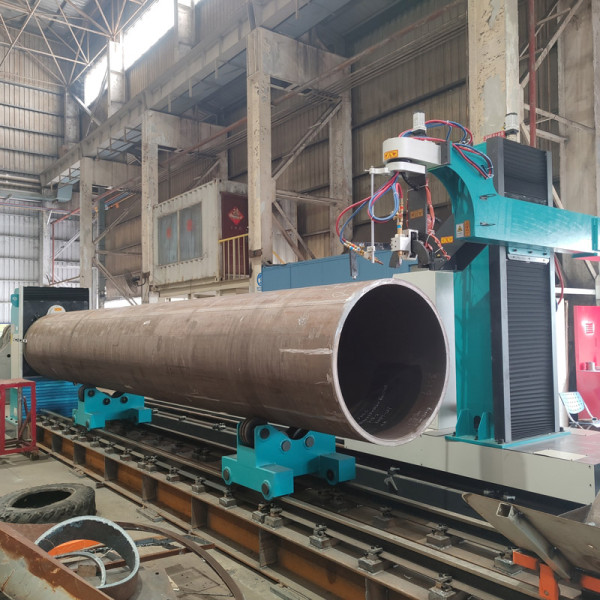

5 axis series CNC pipe plasma cutting machine is a device that automatically calculates and cuts the joints of the ends of steel pipes. The machine can be widely used in the cutting and processing of pipeline structural parts in shipbuilding, construction, petrochemical, machinery, metallurgy and other industries.

H Beam assembly welding straightening machine is a special welding H-beam equipment developed for the production of steel structures. The machine has the advantages of one machine and three uses, high efficiency, low energy consumption and small footprint.

Standard H Heam Production Line:GSD-4000 CNC plasma/ flame cutting machine,HG-1500 H beam automatic assembling machine,MZG-1000*2 Gantry type welding machine,HYJ-40 H beam mechanical straightening machine

CNC Pipe Profile Cutting Machine is a device that automatically calculates and cuts off the end of the steel pipe joints; it does not require operator programming (simple library programming does not require professional designer docking, simple and easy to understand), only need to input the matched diameter of pipe, intersection angle parameters, the machine will automatically cut out the pipe intersecting lines and intersecting holes, and welding groove, it does not need manual polishing.

MH4000 Gantry Type H beam welding machine is developed by the company based on the special characteristics of H-beam profile boat-type welding, combined with the company's many years of experience in developing welding equipment, mainly composed of gantry frame, skateboard mechanism, welding torch mechanical tracking device, flux recovery processing system, electrical control system and submerged arc welding machine.

This machine is designed as a horizontal structure, mainly including base (square tube welding chassis), pipe rotating mechanism (three-jaw chuck and Y-axis rotating power device), steel pipe support bracket (4 groups of scissor shape brackets ), torch moving mechanism, torch lifting mechanism, torch deflection mechanism (the parallelogram structure material is manufactured by aeronautical aluminum CNC machining center), walking track, electrical control system, etc.

H-beam Automatic Assembling Machine is a kind of full-automatic assembly equipment for H-beam developed by ourselves based on broad market investigation and inquiry on customers. Assembling precison is better and speed is fast, maturate and steady, which have been manufactured in large batch and used in the market.

Our company is the direct manufacturer specialized in H-beam Steel Automatic Production Line. After the studying and improving for many years, our light&heavy duty H-beam Production Line has the compacted structure, advanced function and reliable quality.
