H Beam Spraying&Painting Production Line
H Beam Spraying&Painting Production Line
| Categories | H Beam Spraying&Painting Production Line |
|---|---|
| Brand | YOMI CNC Cutting&Welding Machinery |
| Model | YM-PT-3070 |
| Door size (width x height) | 3100x900mm |
| Allow component section (width x height) | 3000x700mm |
| Allows passage through the member length | 3000-12000mm |
| Allow passage through the component weight | 1000kg/m |
| Productivity (workpiece passing speed) | 0.6～3m/min |
| Update Time | Dec 21,2024 |
Detail Information
FEATURES

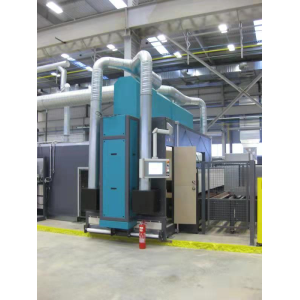

H Beam Spraying&Painting Production Line
★3D scanning can complete components of various sizes and shapes, and automatically form processing codes for the CNC system to automatically paint the components.
★The exhaust gas of the paint unit can be recycled in the closed room.
★Automatic drying, not affected by the temperature difference of the weather.
★The assembly line operation is safe and environmentally friendly, and does not harm the human body.
Vedio
Details
3D Scanning System
Painting Unit
Drying Chamber
Drying Chamber
Technical Parameter
Name | H Beam Spraying&Painting Production Line | ||
Model | YM-PT-3070 | ||
Chamber entrance size | 900*3100mm | ||
Effective working range | 700*3000mm | ||
Number of single spray system guns | 4+8 | ||
Waste dust emission | mg/min <2 | ||
Paint Type | Water-Based Paint/Oil-Based Paint | ||
Table height | 800mm | ||
Conveying Length | min 3000mm | ||
Conveying weight | max 500kg/m | ||
