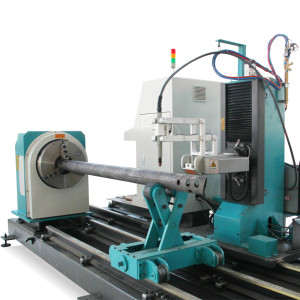

Round Metal Pipe Plasma Cutting Machine

KeyWords

Round Metal Pipe Plasma Cutting Machine

Categories	Round Pipe Cutting Machine
Brand	YOMI CNC Cutting&Welding Machinery
Model	YM-XY3
Cut pipe diameter	Φ=40～300mm
Effective cutting length	6000mm
Plasma cutting tube wall thickness	1-10mm
Required workpiece ovality	≤1%
cutting speed	10～2000mm/min
Moving speed	10～6000 mm/min
maximum load	300Kg
X axis	Torch moves along pipe axial direction
Y axis	pipe rotation axis
Z axis	Torch moves up and down axis
Update Time	Oct 30,2024

Detail Information

Description

3 Axis Round Metal Pipe Plasma Cutting Machine

3 Axis Plasma Cutting Machine used for round pipe. This Machine can cut carbon steel, stainless steel and other material. 3 Axis Round Metal Pipe Plasma Cutting Machine is widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.

The control system adopts a special system for intersecting line cutting, and the man-machine dialogue is conducted through the system window. Under the "parameter setting" interface, the user can set various parameters according to the processing requirements. The software has set the default parameter values during design. The user can Load by clicking the "Load Default" button; the parameters to be cut are input at once, and the system will automatically generate a cutting program according to the input parameters to realize continuous cutting. It makes the machine operation very simple.

FEATURES

1. Automatic free feeding-Head stock

2.Rail-Working Stable and Smoothly

3. Cutting torch

VEDIO

Parameters

Model		3 Axis Round Metal Pipe Plasma Cutting Machine
Cutting range		Pipe Length: 6M, 9M, 12M
Machine size		680016001800
Cutting method		Flame/Plasma
Cutting thickness		Flame cutting: 6-60mm
Plasma cutting		according to plasma power
Plasma cutting speed		According to plasma power
Control system		F2300B
Plasma cutting speed		500-3500mm/min
Plasma torch anti-collision protection system		Yes
Driving method		Servo
Software		PIPE2012
Working condition
Working pressure of compressed gas		＞7Mpa
Required gas flow of plasma		4500L/H
Working environment		Ventilation, no concussion
Power voltage		5KW(not include plasma power)
Types of gas		Acetylene Propane

Application

Equipment introduction

YM-XY3 CNC Pipe Profile Cutting Machine is a device that automatically calculates and cuts off the end of the steel pipe joints; it does not require operator programming, only need to input the matched diameter of pipe, intersection angle parameters, the machine will automatically cut out the pipe intersecting lines and intersecting holes, it does not need manual polishing, widely used in the cutting and processing of pipeline structural parts in shipbuilding, construction, petrochemical, machinery, metallurgy and other industries.

Equipment composition

CNC pipe cutting machine is mainly composed of control system, arm system, drive device, clamping device, support device, guide rail, gas path system, control cabinet, operation table and other parts. Equipped with a plasma cutting system as the main cutting system.
