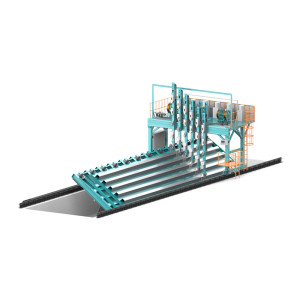

U-Rib Inside Welding Machine

U-Rib Inside Welding Machine

U-Rib Inside Welding Machine
U-Rib Inside Welding MachineU-Rib Inside Welding MachineU-Rib Inside Welding MachineU-Rib Inside Welding MachineU-Rib Inside Welding Machine
CategoriesU-Rib Welding Machine
BrandYOMI CNC Cutting&Welding Machinery
ModelYM-UHN
Floor width4500mm
Length of base plate16000mm
Thickness of base plate12-40mm
Height of U-rib260-320mm
Width of U-rib300-350mm
Thickness of U-rib6-12mm
Angle between U rib plate and bottom plate106°
Bevel angle46°
Quantity of U-ribs of each baseplate1-6
U-rib center distance500-900mm
Automatic welding speed200-1000mm/min
Running speed of the tooling truck200-5000mm/min(Stepless and adjustable)
Penetration of fillet weld≥5mm
Rectilinear repeatability±0.3mm/10m
Equipment size40*8*7m
Update TimeDec 22,2024
Detail Information
Product Features
Strong equipment stability
Gantry type structure good rigidity
Servo double drive, run smoothly
Win -pole variable frequency adjustment
High welding accuracy
Internal flexible support, automatically adjust the welding torch position
The welding torch is always maintained in a fixed welding corner and extending length
Ensure the stability of welding specifications
High degree of automation
Automatic control of welding machine laying
Automatically complete the welding process of U -ribs
Start welding with one click, one -click inreating arc
Digital production
Can connect with other devices
Reserve MES interface
Digital factory configuration
1.Internal probe type flexible arm, automatically adjust the position of the welding gun;
2.The welding gun is always kept at a fixed fillet and extension length to ensure the stability of the welding specification.
3.Automatically control the flux laying to ensure that the flux is evenly laid on the weld bead and fully protect the welding pool.
4.Gantry servo dual drive, to ensure smooth operation.
5.Start welding with one key and start welding synchronously with the tooling truck, and stop arc with one key.
6.Reserved MES interface for digital factory configuration
