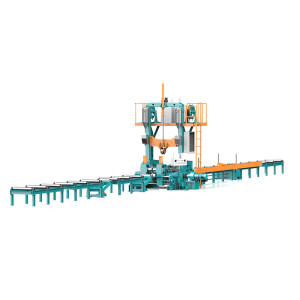

3 In 1 I Beam Assembling Welding Straightening Machine
3 In 1 I Beam Assembling Welding Straightening Machine
![3 In 1 I Beam Assembling Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/8059127.jpg?x-oss-process=image/resize,m_pad,l_600/quality,Q_90)
![3 In 1 I Beam Assembling Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/8059127.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![3 In 1 I Beam Assembling Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/8059141.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![3 In 1 I Beam Assembling Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/8059130.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![3 In 1 I Beam Assembling Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/8059131.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![3 In 1 I Beam Assembling Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/8059132.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
Categories | Assembling Welding Straightening 3 In 1 |
---|---|
Brand | YOMI CNC Cutting&Welding Machinery |
Model | PHJ0818 |
Workpiece height | 200-2000mm |
Web thickness | 6-40mm |
Flange width | 200-800 mm |
Flange thickness | 8-60mm |
Controllable deformation of thickness | The Max 40mm |
Workpiece length | 4000-15000mm |
Conveying speed of the workpiece | 6000mm/min |
Welding process | Single arc single wire |
Update Time | Sep 8,2024 |
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7798353.jpg?x-oss-process=image/quality,Q_90)
1.It is a special machine for assembling, welding and straightening of H beam/I beam/T beam.
2.It integrates the processes of assembly machine, gantry welding and straightening machine into one machine.
3.It significantly improves production efficiency ,reduces labour cost, saves installation space.
Item |
Technical Parameter |
||
Workpiece height |
200-2000mm |
||
Web thickness | 6-40mm | ||
Flange width | 200-800mm | ||
Flange thickness | 8-60mm | ||
Controllable deformation of thickness | The Max 40mm | ||
Workpiece length | 4000-15000mm | ||
Conveying speed of workpiece | 6000mm/min | ||
Welding speed |
150-1500mm/min |
||
Welding process |
Single arc single wire, Double arc double wire, Single arc double wire. |
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7824575.jpg?x-oss-process=image/quality,Q_90)
1. Assembly Parts
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7824576.jpg?x-oss-process=image/quality,Q_90)
2.Hydraulic Assembly
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7798356.jpg?x-oss-process=image/quality,Q_90)
3.Welding Parts
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7824577.jpg?x-oss-process=image/quality,Q_90)
4.Bilateral Welding
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7824578.jpg?x-oss-process=image/quality,Q_90)
5.Flange Straightening Part
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7824579.jpg?x-oss-process=image/quality,Q_90)
6.Parametric Interface
- Labor Saving:Traditional beam production line requires 5 workers, our 3 in 1 beam production line only needs 2 workers.- assembly, welding and straightening at the same time.
- Footprint Saving: The total length of traditional beam production line is about 90m, while 3 in 1 beam production line is about 30m lo, which saves two-thirds of loor area.- It can welding two seams once, while traditional only can welding one seam once.
- High Efficiency: Traditional beam production line needs to flip four times, 3 in 1 beam production line only needs to flip one time and the deformation is small.Saving 2/3 of the workspace.
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7822737.jpg?x-oss-process=image/quality,Q_90)
![Assembly Welding Straightening Machine](https://icdn.tradew.com/file/202211/1575595/jpg/7822739.jpg?x-oss-process=image/quality,Q_90)
